How to use XQuery in WSO2 ESB

To transfer the message in WSO2 ESB XQuery can also be used like Script, XSLT and payload mediator. XQuery provides the facility to query like database within the xml. We can filter xml response with xml query so based on the requirement we have to use transform mediator.

We can define XQuery in the synapse with below syntax.

<xquery key="string" [target="xpath"]>
    <variable name="string" type="string" [key="string"] [expression="xpath"] [value="string"]/>?

In above syntax we have to provide some parameter as mentioned below.

  • In key we have to provide a unique String name of it which can be used in service logic to call XQuery. It specifies the registry of the XQuery file.
  • Target is an attribute which specifies the node of the SOAP message that should be transformed. By default the first child of the SOAP body is selected.
  • In variable we can pass an attribute or variable value like in java function which can be retrieved in XQuery file to process further.

Console UI:

XQuery comes in the category of transformation, so if you select transform menu, you can see XQuery option in it.

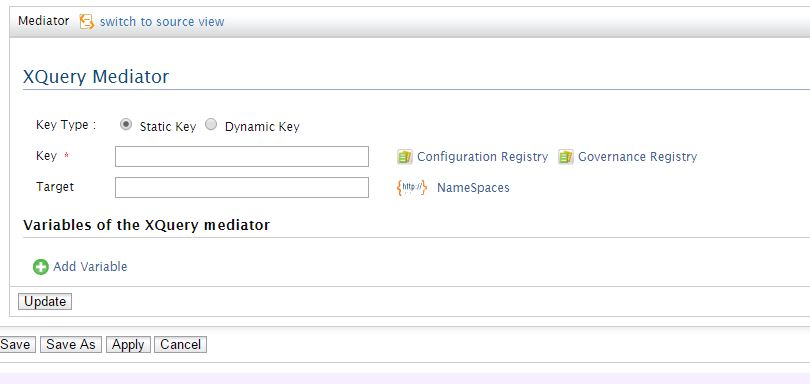

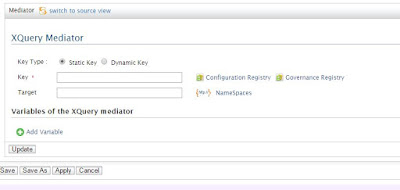

You can fill the required details like Key Type, Key and its Target. Once you click Apply and save, it will be added in your service.


In this example we are trying to find the details of an employee which belongs to IT department through XQuery mediator.

Define XQuery:

I am giving the XQuery key name is “GetEmployeeDetail_XQ” and also giving its path resides in conf directory.

<localEntry key="GetEmployeeDetail_XQ" src="file:repository/conf/employee/resources/xquery/GetEmployeeDetail.xq"/>

Call XQuery in Synapse:

<xquery key="GetEmployeeDetail_XQ">
<variable name="Department" action="set" value="IT"/>

In this XQuery we are also passing one variable and value of this variable is “IT”.


xquery version "1.0";
declare namespace swj="";
declare variable $Department as xs:string external;

declare variable $EmployeeName := $EmployeeDetailsResponse/swj:EmployeeDetails[swj:DepartmentNumber=$Department]/swj:EmployeeName/text();
declare variable $EmployeeDesignation := $EmployeeDetailsResponse/swj:EmployeeDetails[swj:DepartmentNumber=$Department]/swj:EmployeeDesignation/text();
declare variable $EmployeeAddress := $EmployeeDetailsResponse/swj:EmployeeDetails[swj:DepartmentNumber=$Department]/swj:EmployeeAddress/text();
declare variable $EmployeePhone := $EmployeeDetailsResponse/swj:EmployeeDetails[swj:DepartmentNumber=$Department]/swj:EmployeePhone/text();


Retrieve details in Synapse:

From the below Xpath expression we can get the value of Employee belongs to IT department from the XQuery, we have transformed.

<property name="EmployeeName" action="set" expression="//EMPLOYEE_DETAILS_RESPONSE/EMP_NAME/text()"/>
<property name="EmployeeDesignation" action="set" expression="//EMPLOYEE_DETAILS_RESPONSE/EMP_DESG/text()"/>
<property name="EmployeeAddress" action="set" expression="//EMPLOYEE_DETAILS_RESPONSE/EMP_ADD/text()"/>
<property name="EmployeePhone" action="set" expression="//EMPLOYEE_DETAILS_RESPONSE/EMP_PHONE/text()"/>
